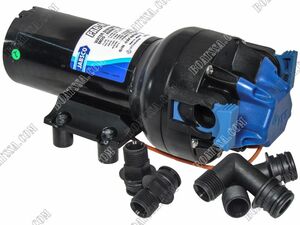

Jabsco par-max plus water pressure pump 60psi 6gpm - Nelspruit

The high pressure capability of the new Jabsco PAR-Max Plus Series water pressure pumps, provides exceptional flow and consistent water pressure to easily handle the demand of multiple outlets. Service up to five outlets with smooth flow and hassle-free operation.

SKU: 15557

The PAR-Max Plus series is self-priming up to 10ft (3m) and can run dry without damage. It’s manufactured from corrosion resistant materials, capable of handling the harshest marine environments. The PAR-Max Plus series water pressure pumps are certified to EN ISO 8846 Marine (Ignition Protection).

Features and Benefits:

Sealed switch and co-injected molded diaphragm, eliminates leak paths, extending the life of the pumps by up to 50%
Jabsco’s robust electric diaphragm pump design, proven with over 7 million units in service
Automatic pressure switch, tested over 4 millions cycles without failure
Quick disconnect ports, allow for ease of installation in hard to reach places
Improved noise dampening rubber feet, significantly minimize vibration when mounted against hard surfaces
Supplied with snap-in ports for hose or Hep20 connectors


Specifications:

Motor Design: Perm. Magnet TENV (non-ventilated)
Voltage: 12V
Pump Head Material: Glass Filled Nylon
Elastomers Diaphragm: Santoprene®
Check Valve: EPDM
Maximum Flow Rate: 6 GPM (22.5 LPM)
Maximum Pressure: 60 PSI (4.3 BAR)
Fuse Size: 20 Amps
Duty Cycle: Intermittent
Port Size Inlet/Outlet: 22mm 3/4” bore hose or Hep20 push-fit connectors HD26B/22W
Protection Class (IP Rating): IPX6
Pressure Switch: Cuts in at 3.2bar (45PSI) – cuts out at 4.2bar (60PSI)
Nett Weight: 4.3KG
Dimensions: (L) 270mm x (W) 129mm x (H) 111mm
Packaging Weight: 4.8KG
Packaged Dimensions: (L) 170mm x (H) 110mm (W) 340mm
Certifications: CE, NSF, UL, RoHs, IPX6
